The Lifecycle Engine

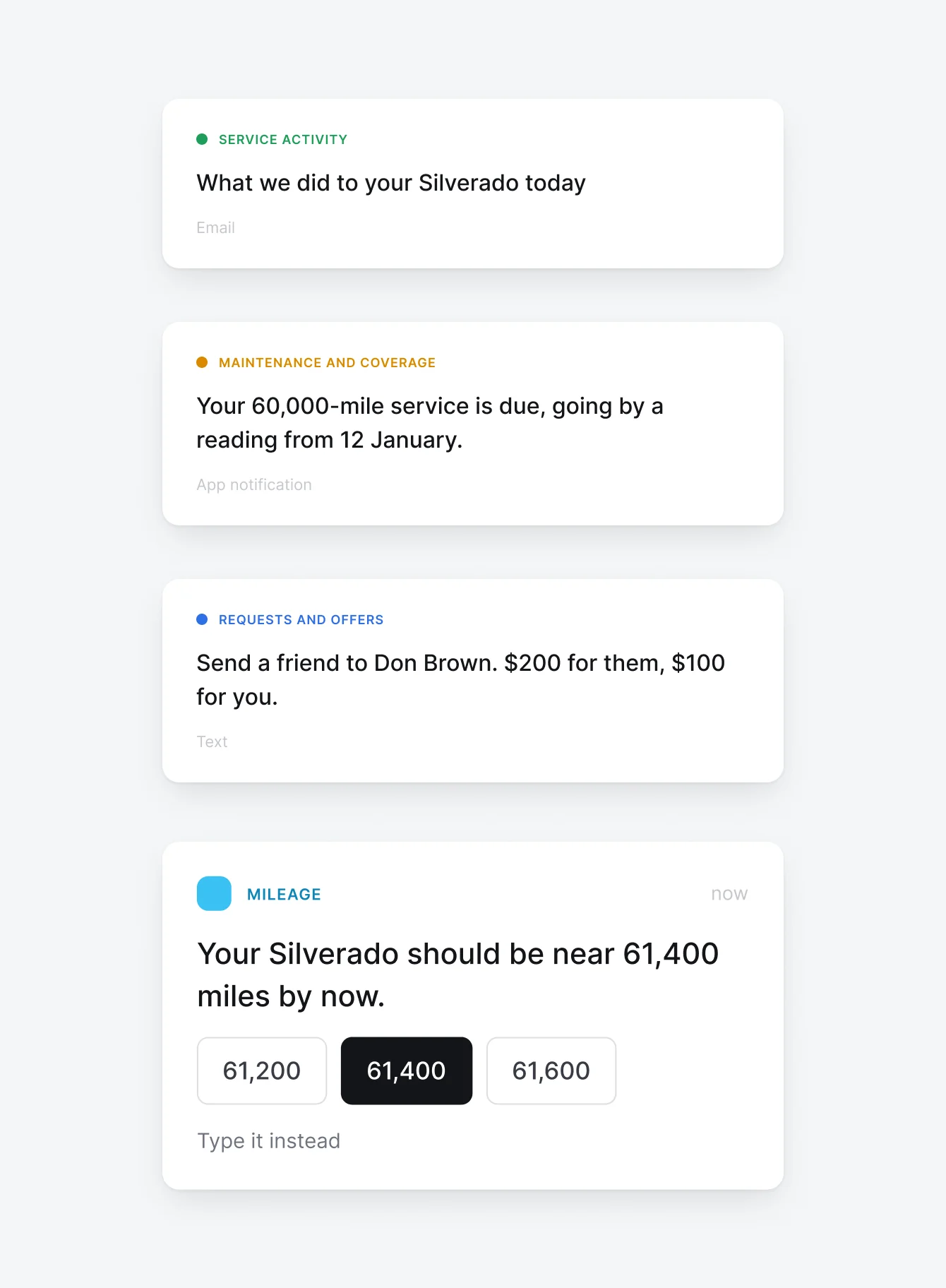

A completed service, an approaching milestone, an open recall, and a request for mileage all relate to the same vehicle. Designing them separately can obscure how they add up for the owner.

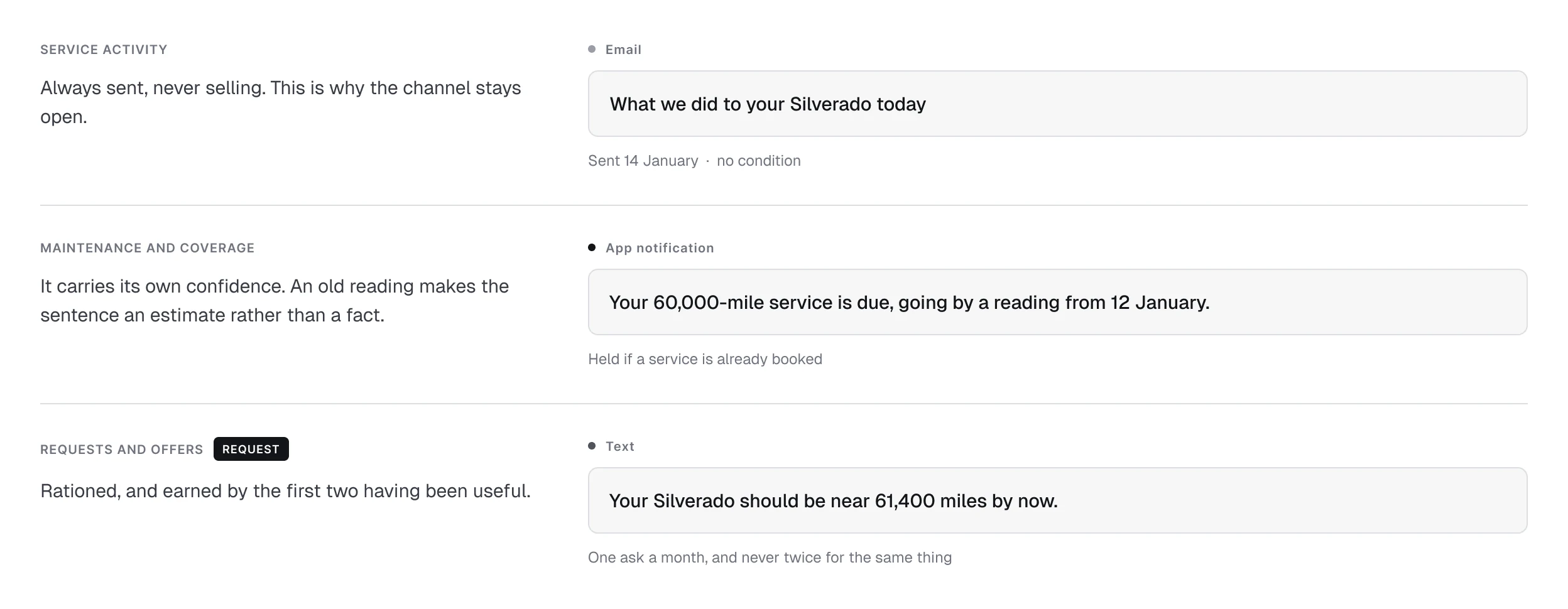

I organized the messages as entries on one timeline. The distinction is between an update about what happened, a reminder about what is due, and a request for the owner to do something.

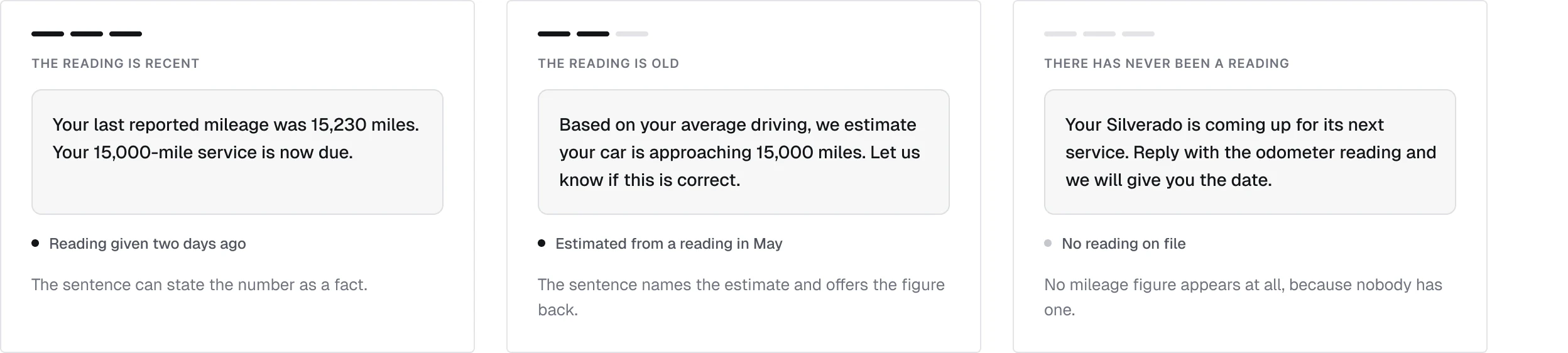

A reminder based on an old mileage reading should not sound like a current observation. The three examples show how the wording changes with the information available.

When a reading is old, the message identifies the estimate and gives the owner a way to correct it. When there is no reading, the copy does not introduce a mileage figure as though one were known.

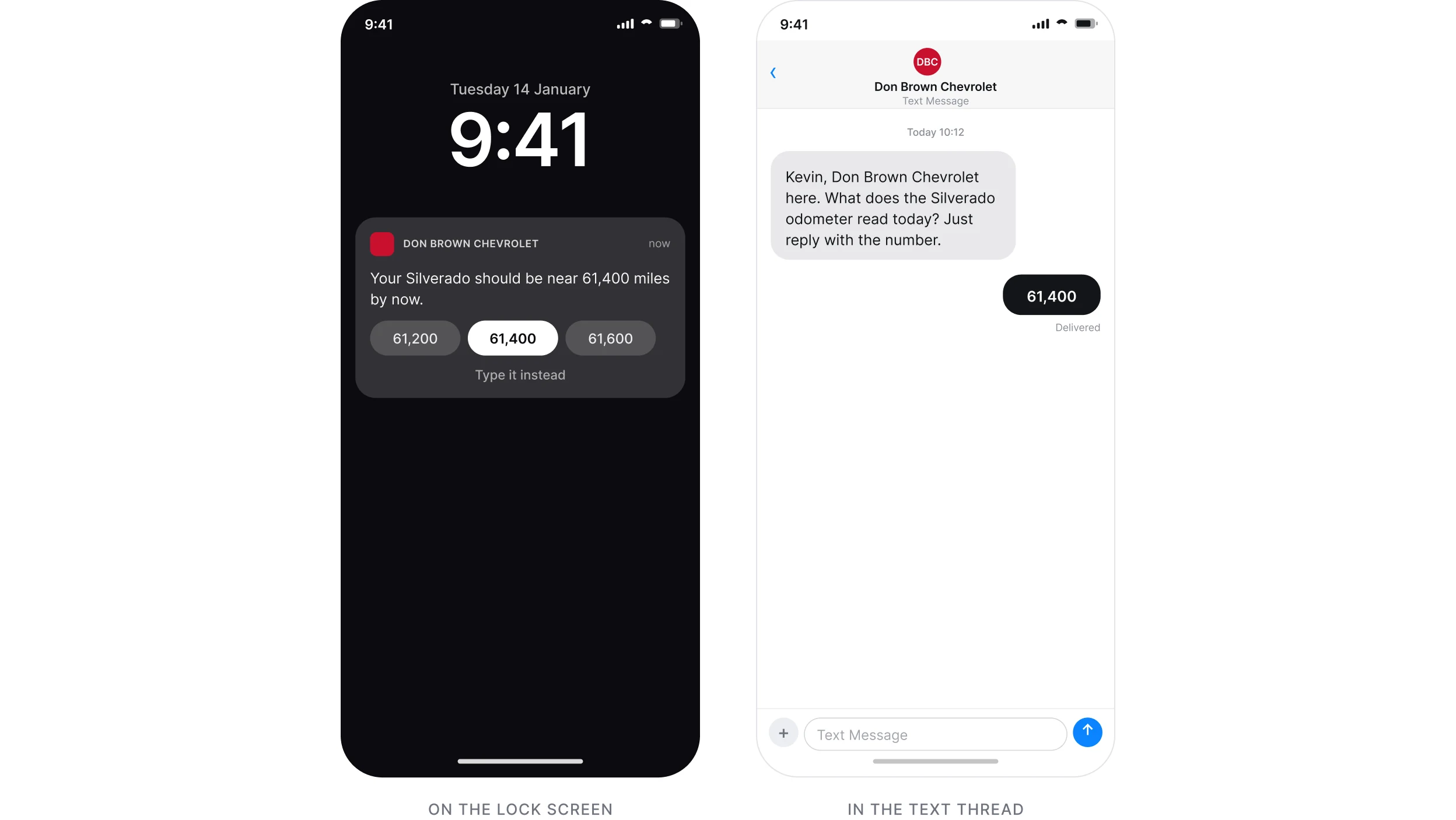

The mileage-capture examples explore the same task in three places: suggested readings in an app notification, a numeric SMS reply, and an in-app camera route.

I kept the request focused on the reading. It does not need to become a booking pitch or a promotion at the same time.

I specified send-time checks so a recent booking can stop a message scheduled earlier. I also defined frequency limits across the owner relationship and a way to combine work due in the same week.

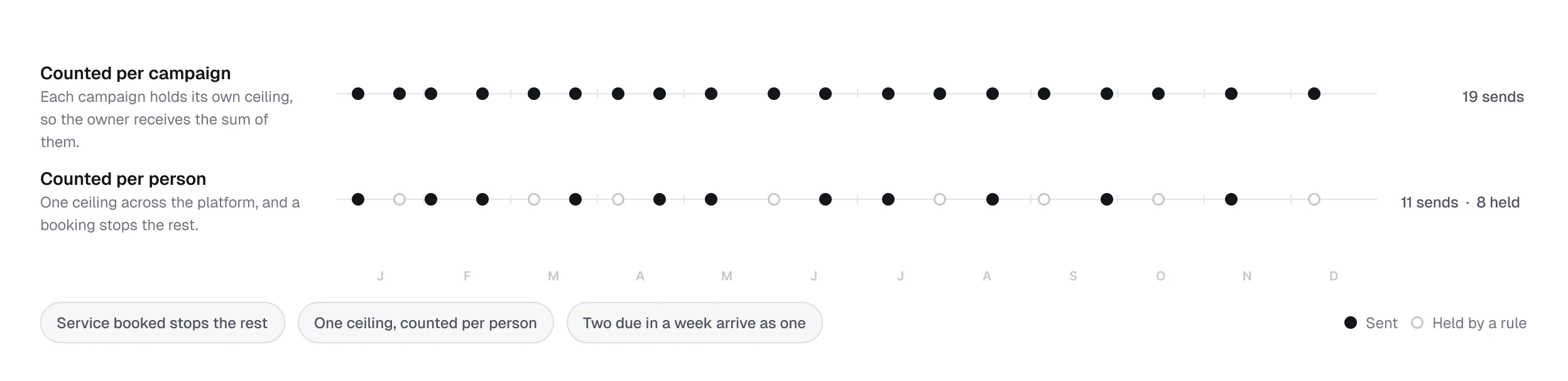

The comparison makes the consequence visible: the owner receives the sum of the platform’s messages, not a separate experience for each campaign or vehicle.

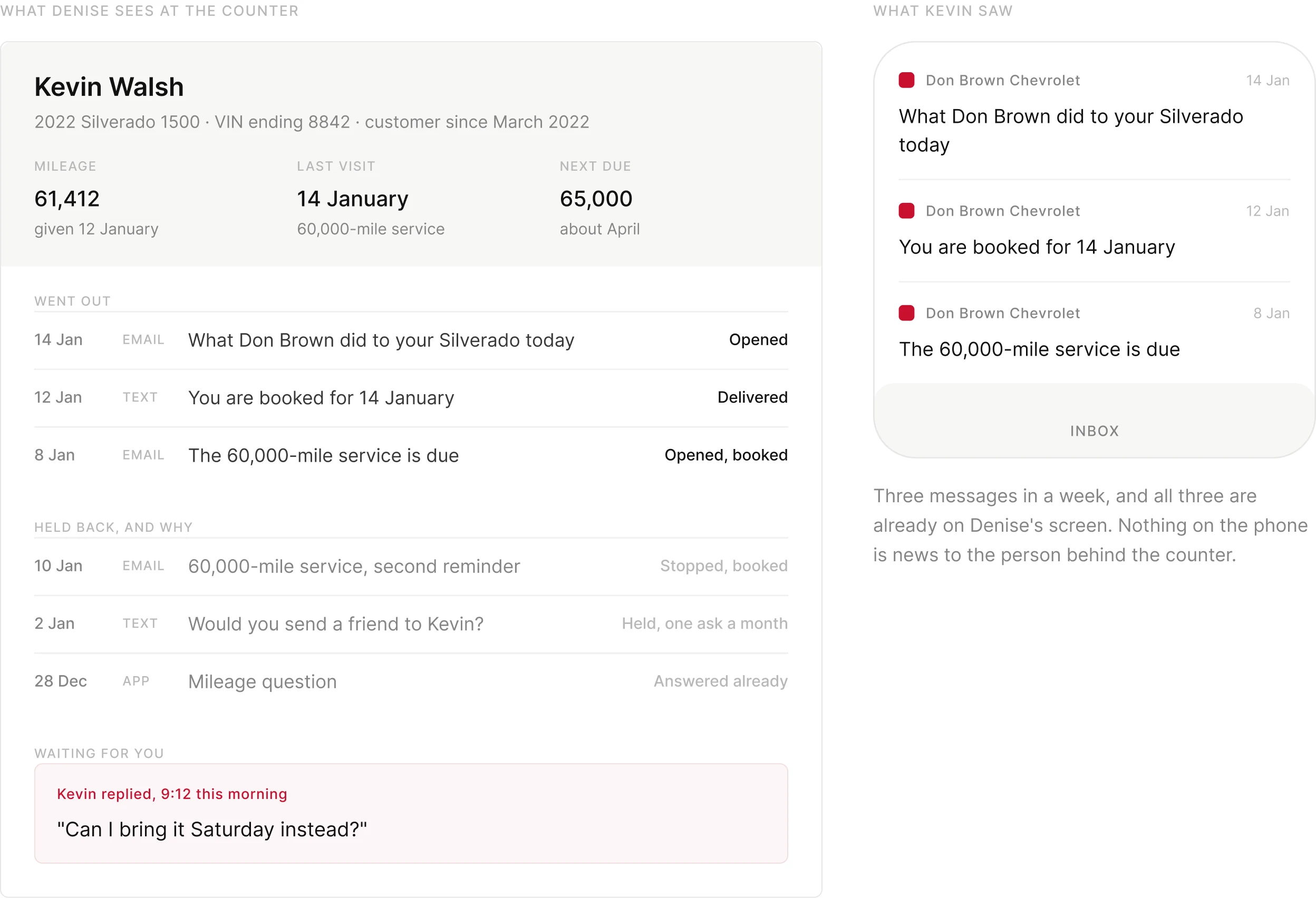

The staff/customer pairing shows the two sides of a send. The advisor needs to know what the customer received, and the record needs to distinguish a held message from a failed one.

I specified that the staff entry be written before the send and that held messages carry a reason. This makes a deliberate decision not to contact someone visible to the people using the system.

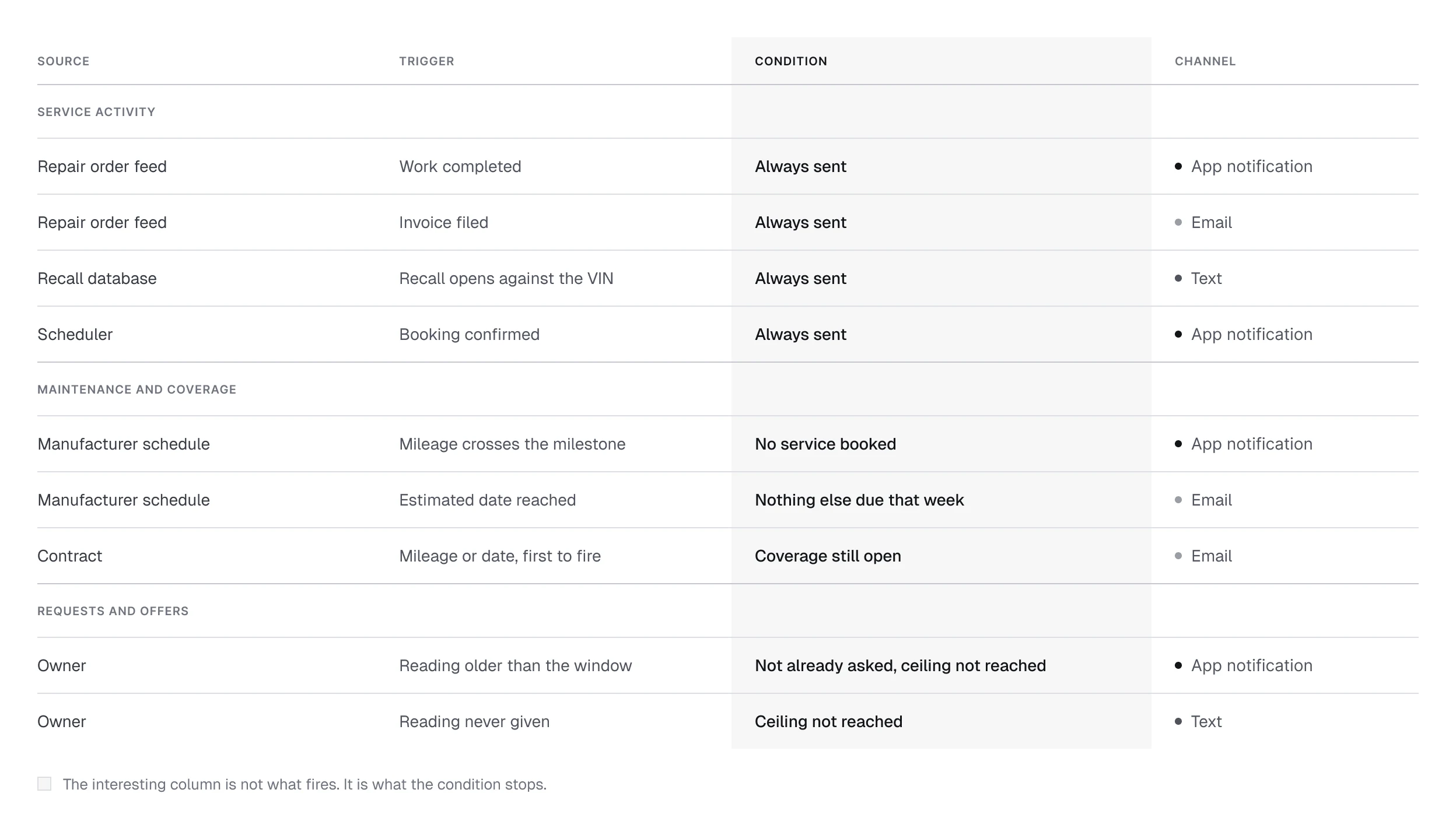

Each event needs a source, a trigger, a condition, and a channel. The source determines what can be claimed; the trigger determines when it becomes relevant; the condition decides whether it is still needed; the channel carries the message.

I used the same event table to define the design and support engineering and QA. Feed limitations can then change the promise in the message, rather than being hidden behind it.

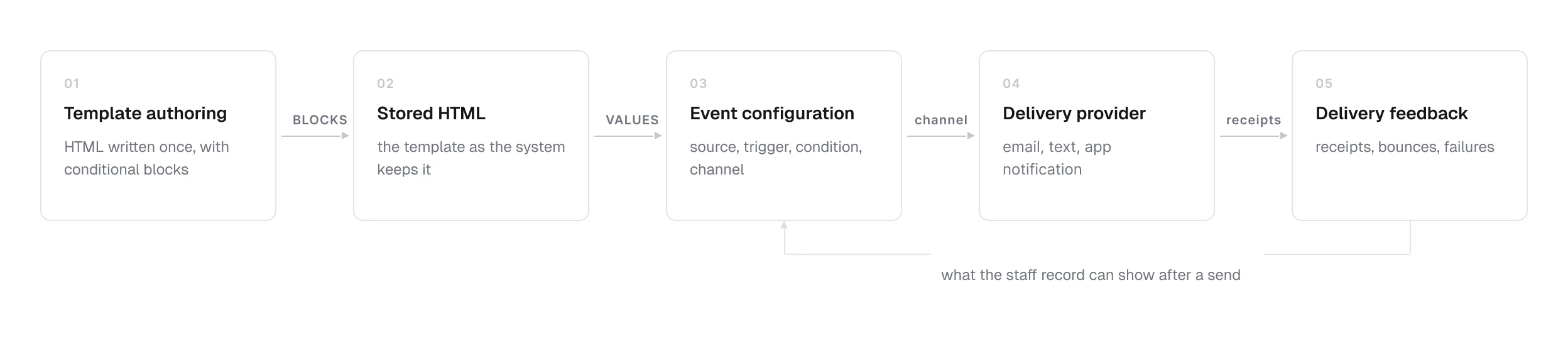

The architecture connects template authoring, stored HTML, event configuration, delivery providers, and delivery feedback. Those are design constraints because the copy contains conditional blocks and values filled at send time.

My design work had to account for that path: which values a template receives, which blocks it renders, and what the staff record can show after a send.

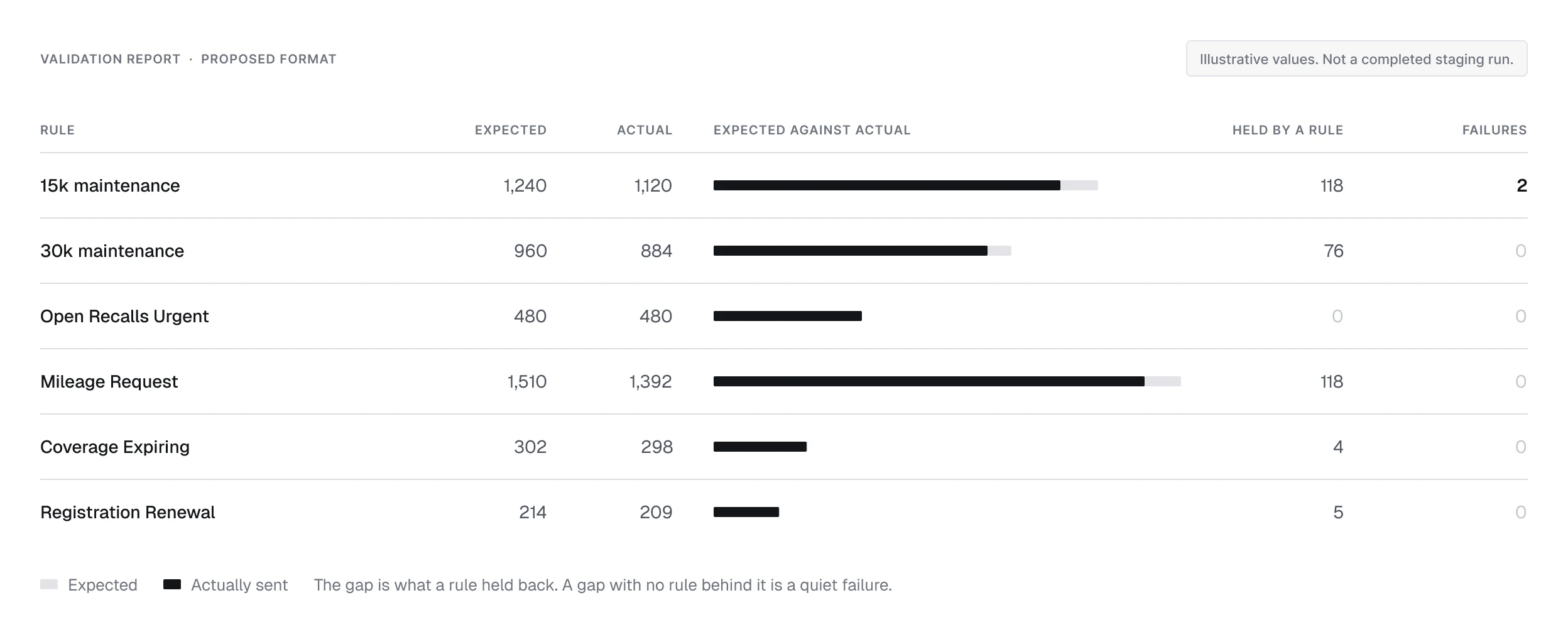

The example report compares expected sends with actual sends by named rule. It shows how the system could be checked for quiet failures, including messages that should have been held.

This is the proposed validation format, shown with illustrative values rather than a completed staging run.
